Lightning Arrester Collection

by Rob L. Dey

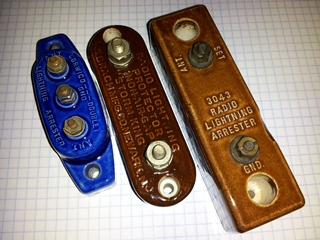

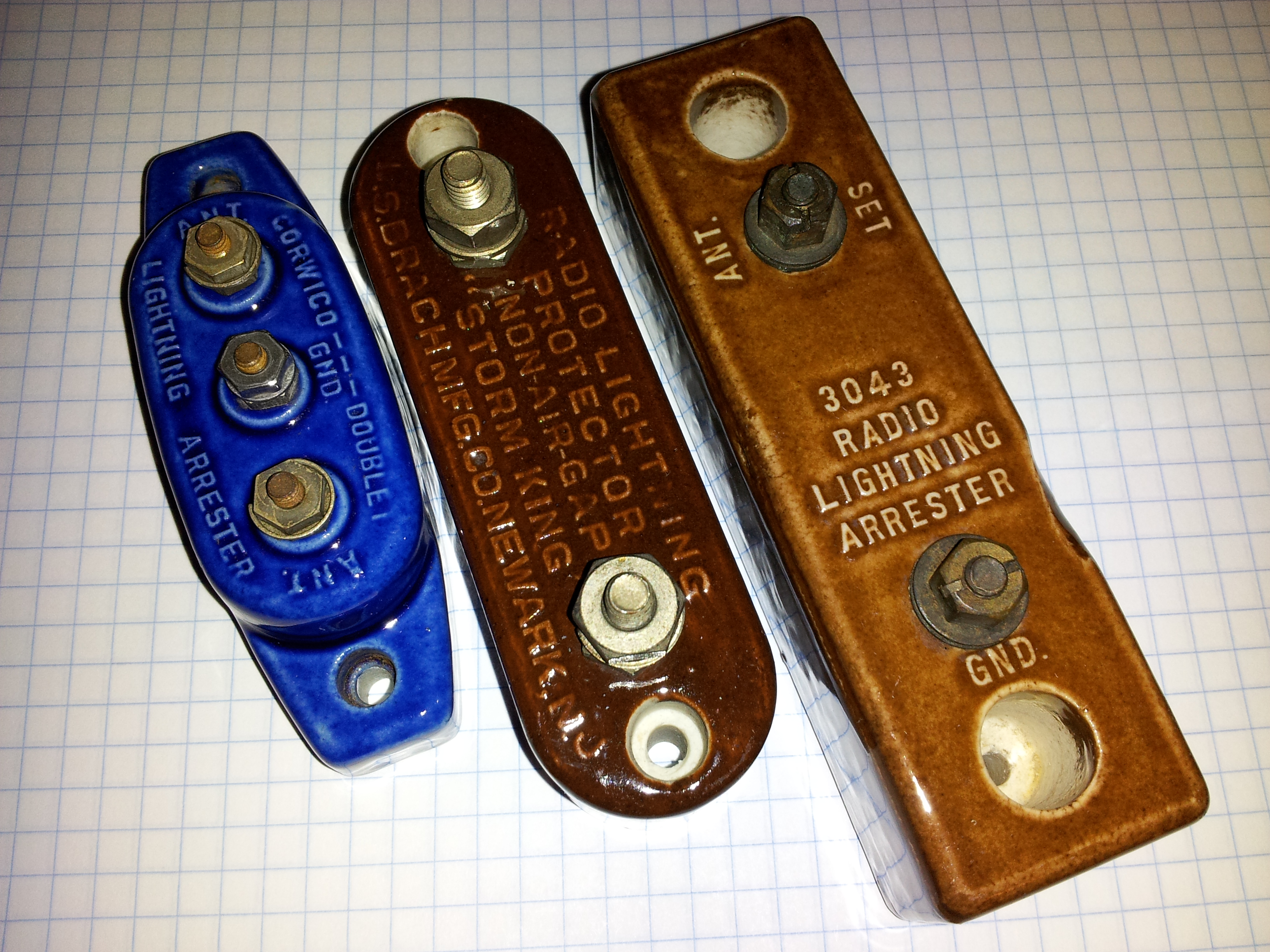

Porcelain Lightning Arresters
A collection of 9 porcelain lightning arresters for radio antenna lead-in (feedline) in both single and duplex (doublet) styles.
NOTE: All photos on this web site are copyright protected. Please contact the owner to reuse the images elsewhere.

Image Manufacturer Model Color Studs Markings Year List (Date) History Condition Dimensions Weight Description
la1 Blitz Radio n/a light blue (mottled) 2 Blitz Radio A G Electrical Equipment Co. Trenton, NJ (top) embossed, Underwriters Approved (bottom) stamped 1925-1950   Electrical Equipment Co., Trenton, NJ Good     Glazed ceramic with 2 brass terminals
la2 Blitz Radio n/a blue (mottled) 2 Blitz Radio A G Electrical Equipment Co. Trenton, NJ (top) embossed, Underwriters Approved (bottom) stamped 1925-1950   Electrical Equipment Co., Trenton, NJ Good     Glazed ceramic with 2 brass terminals
la8 Brach Storm King brown (chocolate) 2 Radio Lightning Protector Non-Air-Gap "Storm King" L.S. Brach Mfg. Co. Newark, NJ (top) embossed 1925-1950   L.S. Brach Mfg. Co., 127-129 Sussex Ave., Newark, NJ (Established 1908, Address 1921); Also, Model 4004, Storm King 300, and clear glass Vis-O-Glow neon bulb type. Good (2 small chips) 4.55"L x 1.38"W x 1.17"H meas'd 7.75 oz. Glazed ceramic with 2 nickel-plated brass terminals (carbon resistor type)

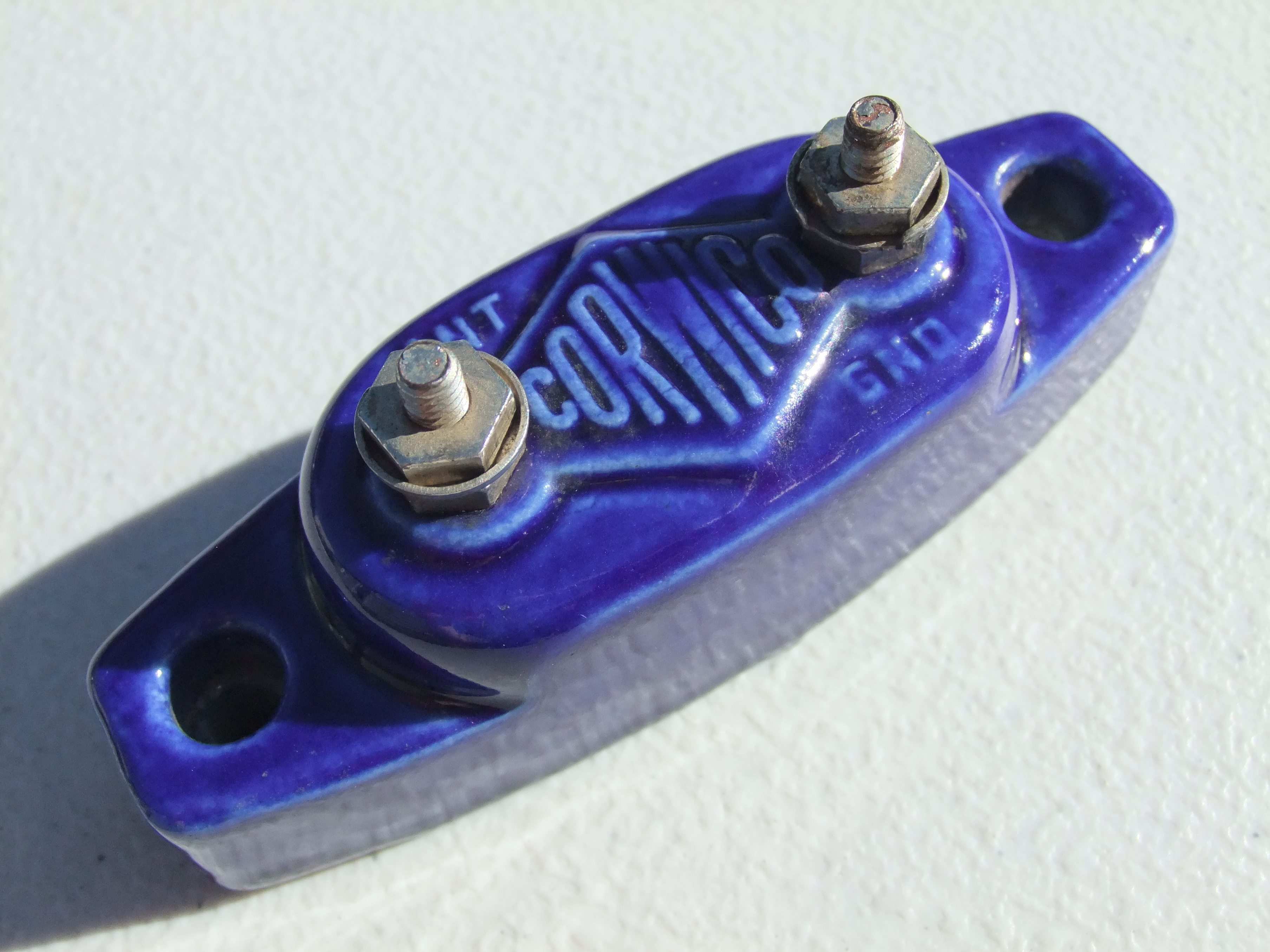

la5 Corwico 825 blue (cobalt) 2 Corwico (diamond logo) ANT GND (top) embossed, 825 (bottom) embossed 1925-1950   Cornish Wire Co., New York, NY (1924-1959); Manufacturing at 101 Water Street (Mill), Williamstown, MA 01267 (1936-1959); Acquired by General Cable (1959-1984) Good 3.76"L x 1.16"W x 1.20"H meas'd 4.30 oz. Glazed ceramic with 2 chrome-plated steel terminals

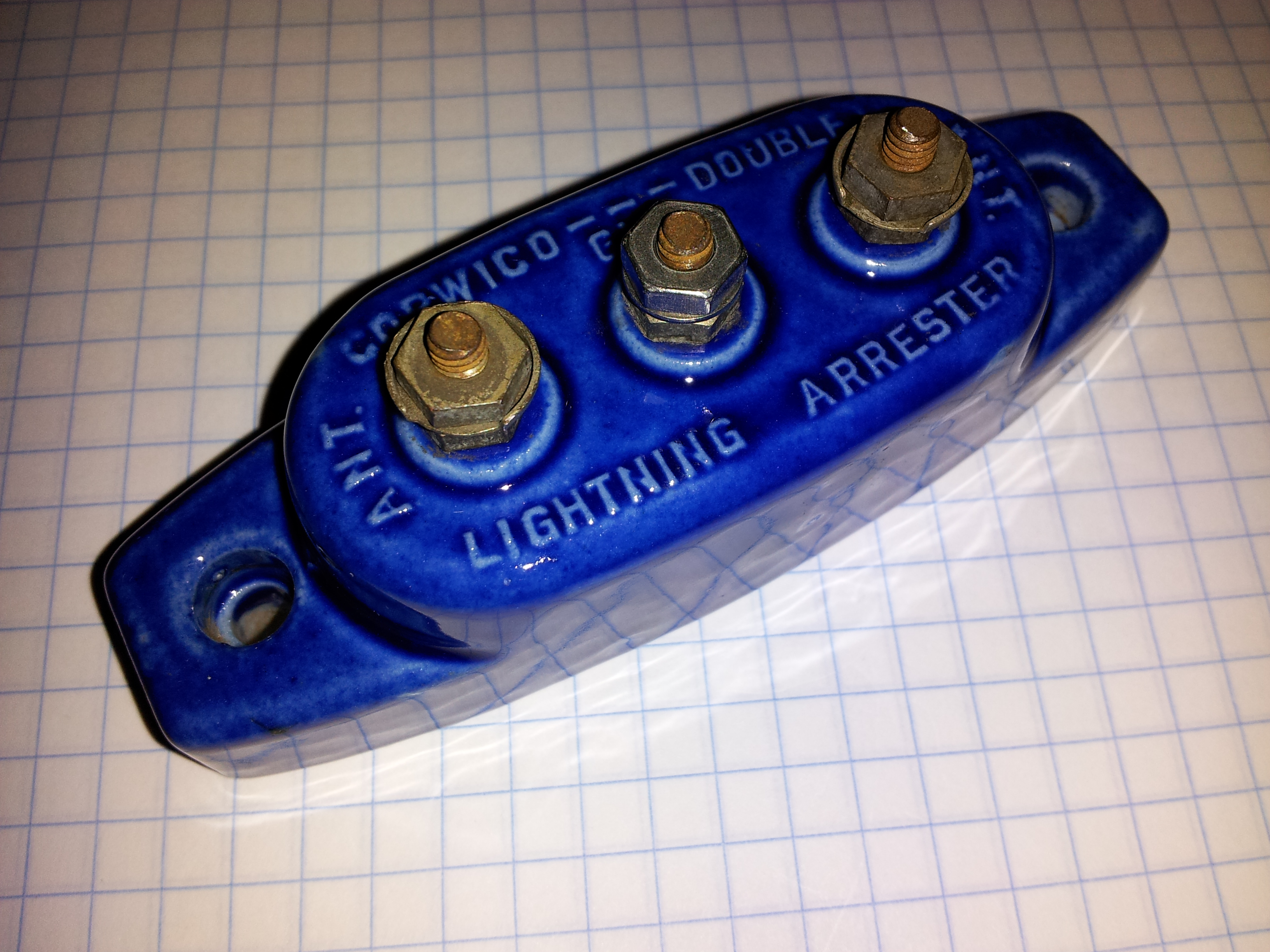

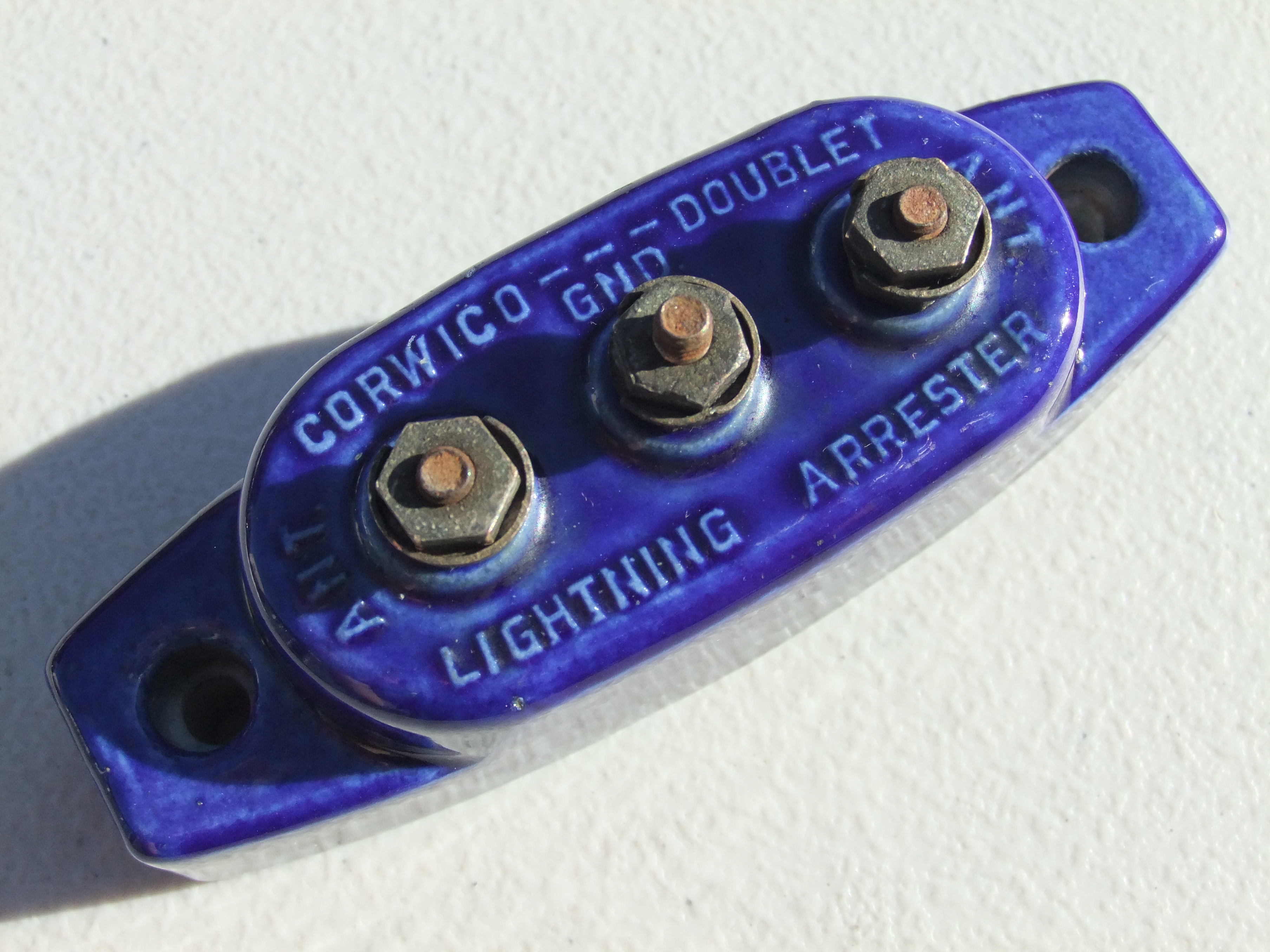

la6 Corwico 827 blue (cobalt) 3 Corwico --- Doublet Lightning Arrester ANT. GND. ANT. (top) embossed, 827 (bottom) embossed 1935-1950   Cornish Wire Co., New York, NY (1924-1959); Manufacturing at 101 Water Street (Mill), Williamstown, MA 01267 (1936-1959); Acquired by General Cable (1959-1984) Good 4.20"L x 1.37"W x 1.26"H meas'd 6.45 oz. Glazed ceramic with 3 chrome-plated steel terminals
la7 Corwico 827 blue (cobalt) 3 Corwico --- Doublet Lightning Arrester ANT. GND. ANT. (top) embossed, 827 (bottom) embossed 1935-1950   Cornish Wire Co., New York, NY (1924-1959); Manufacturing at 101 Water Street (Mill), Williamstown, MA 01267 (1936-1959); Acquired by General Cable (1959-1984) Good (1 original nut and washer missing) 4.17"L x 1.35"W x 1.17"H meas'd 5.70 oz. Glazed ceramic with 3 chrome-plated steel terminals
la3 Fleron Radio 92 brown (cherry) 3 Fleron Radio No. 92 (top) embossed 1935-1941   M.M. Fleron & Son, Inc., Trenton, NJ (1922-1941); Also, Home Guard (cobalt blue) model. Good     Glazed ceramic with 3 nickel-plated brass terminals
la4 Fleron Radio 92 brown (cherry) 3 Fleron Radio No. 92 (top) embossed 1935-1941   M.M. Fleron & Son, Inc., Trenton, NJ (1922-1941); Also, Home Guard (cobalt blue) model. Good     Glazed ceramic with 3 nickel-plated brass terminals

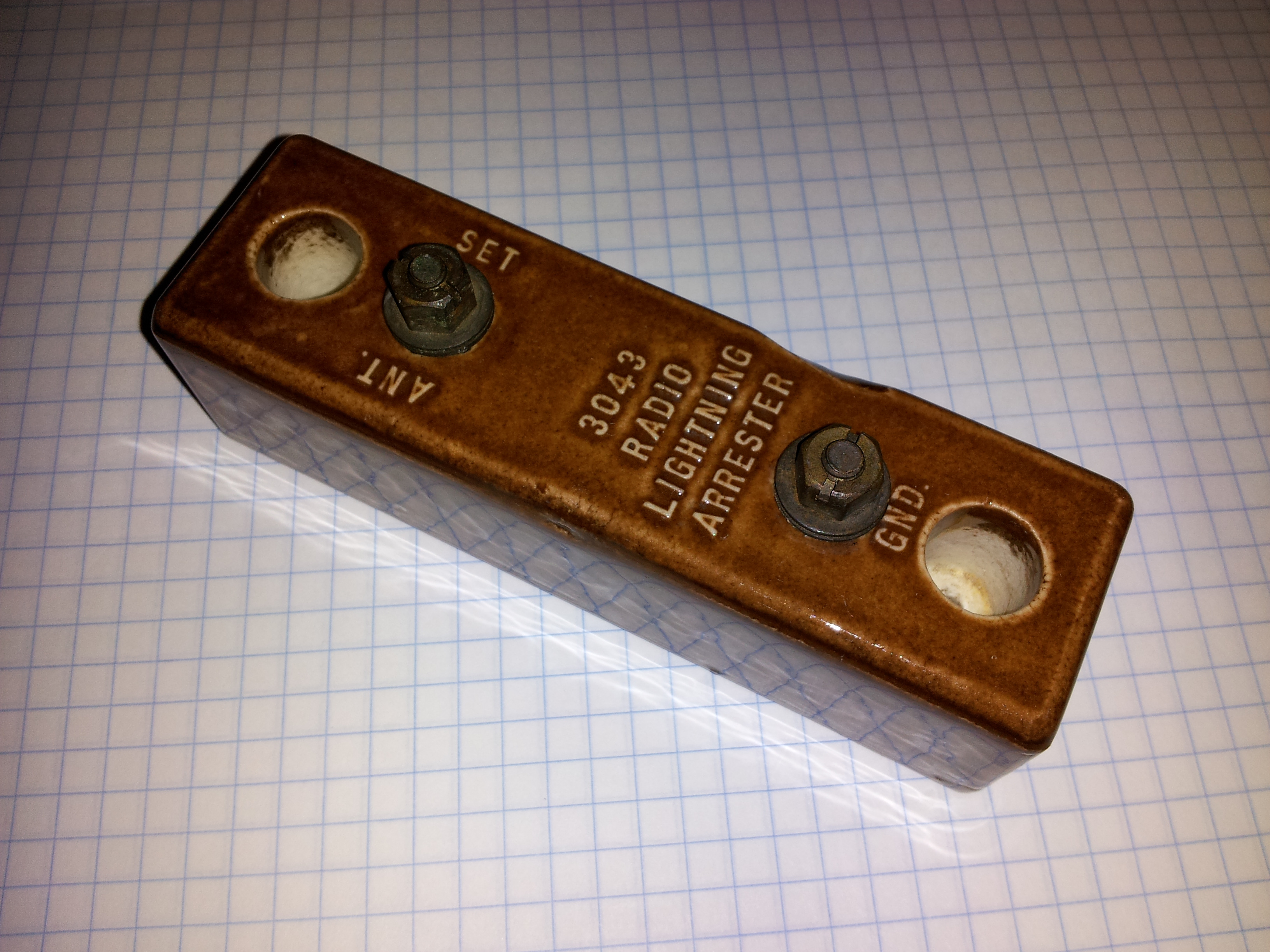

la9 Unknown 3043 light brown (honey) 2 3043 Radio Lightning Arrester SET ANT. GND. (top) embossed 1920-1940   Unknown Good (1 manufactured defect) 5.12"L x 1.53"W x 1.51"H meas'd 12.60 oz. Glazed ceramic with 2 brass terminals

Other brands include: Belden, Birnbach Radio Co., Bud Radio, Everett by Railroad Accessories Corp., Guardian by Muter Co., Jewell by Chicago Radio, Knox Radio by Knox Porcelain Co./Corp., Memco by Maxwell Engineering & Mfg. Co., RVA by Great Lakes Radio Supplies Co., Triangle by J.H. Bunnell & Co., Northern Electric in Canada; Smith & Stone, Ltd. in Canada.
